| Voltage
relays (triple phase) |
| Model:LVS-3EH
Triple phase high/low voltage relay. |
| Model:LVS-3EHR
Triple phase high/low voltage relay. |
| Model:LVS-3EHC
Triple phase high/low voltage relay. |
| |
| Model:LVS-3EHB
Triple phase high/low voltage relay. |
|
Features:
|
- A digitized
microcomputer. High precision and can be used as a voltage gauge.
- With
"Input Delay" function, users can delay the voltage inspection
until after start-up, ensuring high-precision of the relay.
- With
"Error delay" function, avoiding abnormal movement when voltage
is too high/low.
- With high/low
Differential reset function. Range: 1%~15%, which can calculate and
display as relative voltage automatically.
- Working
voltage: 85V~264V ; Voltage inspection range: 1V-499V
- OVER/UNDER
setting function.
- Working
voltage input range: 85~260ACV
- Error
setting alarm.
- Re-correct
function for reading reset value.
- When abnormal
voltage occurs, monitor will flicks and the relative malfunction indicator
will light up.
- RS/ST
voltage display is changeable.
- Plugged
model, easy to install.
- CE certified.
|
|

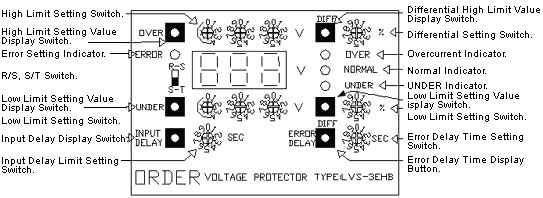

| Planel
view: |
 |
| |

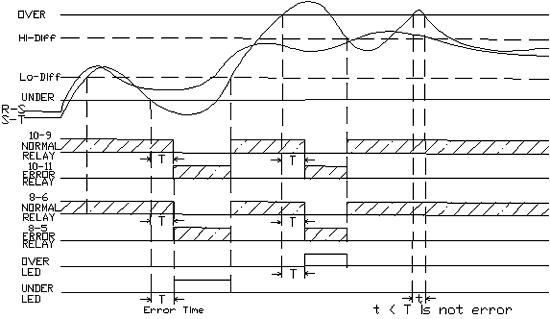

| Movement:
|
 |
| |
| SOCKET
VIEW: |
 |
| LVS-3EHB |
| |
|
|
SOCKT |
| CONTACT |
8
- 5 |
8
- 6 |
10
- 9 |
10
- 11 |
11PFA |
| UNDER |
CLOSE |
OPEN |
CLOSE |
OPEN |
| NORMAL |
OPEN |
CLOSE |
CLOSE |
OPEN |
| OVER |
OPEN |
CLOSE |
OPEN |
CLOSE |
|
|

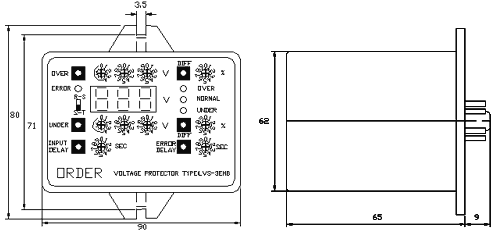

| Dimensions
& Base: |
 |
| |
 |
