Key Specifications/Special Features:

Voltage relays (triple phase)

Model:LVS-3EH Triple phase high/low voltage relay.

Model:LVS-3EHR Triple phase high/low voltage relay.

Model:LVS-3EHB Triple phase high/low voltage relay.

Model:LVS-3EHC Triple phase high/low voltage relay.

Features:

A digitized microcomputer. High precision and can be used as a voltage gauge.

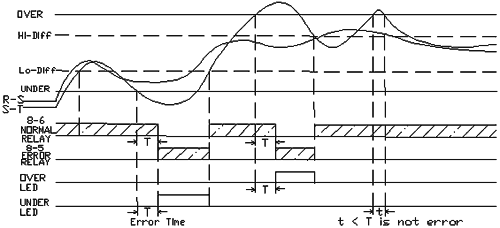

With "Input Delay" function, users can delay the voltage inspection until after start-up, ensuring high-precision of the relay.
With "Error delay" function, avoiding abnormal movement when voltage is too high/low.
With high/low Differential reset function. Range: 1%~15%, which can calculate and display as relative voltage automatically.
Working voltage: 85V~264V ; Voltage inspection range: 1V-499V
OVER/UNDER setting function.
Working voltage input range: 85~260ACV
Error setting alarm.
Re-correct function for reading reset value.
When abnormal voltage occurs, monitor will flicks and the relative malfunction indicator will light up.
RS/ST voltage display is changeable.

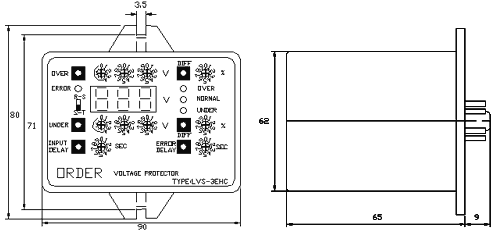

Plugged model, easy to install.
CE certified.
