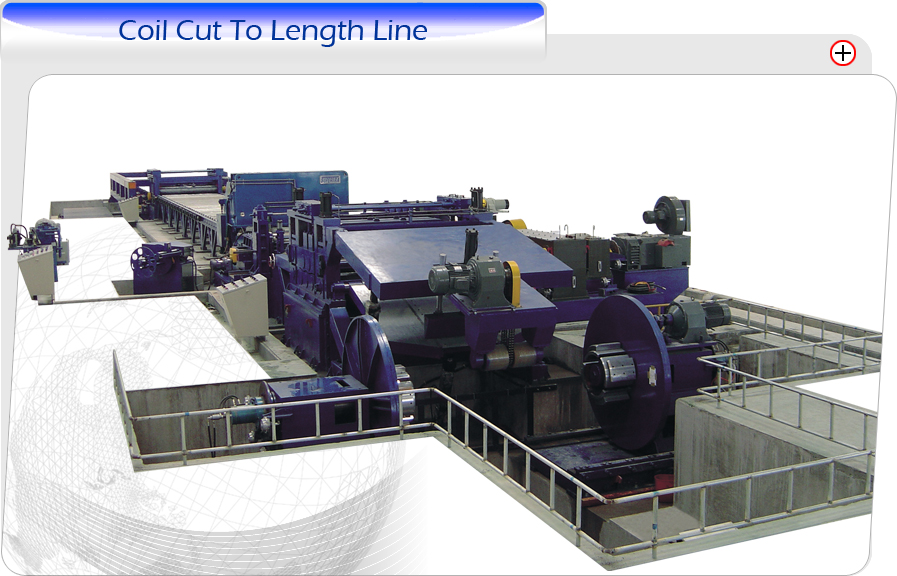

| This line is designed for cutting of CR / HR carbon steel, Galvanized Coils into sheets of prescribed size and heap them up on Piler. |
| * Mechanism: |
* Optional accessories: |
- Coil car
- Uncoiler
- Leveler
- Pit with guider
- Side Guide
- NC control conveyor
- Shear
- Conveyor
- Piler (Piler car)
|
- Tape (Paper) stand
- Edge trimmer
- Electrostic generator
|
|
|
| |
|
| |
| Modle |
Coil Width |
Wall thickness |
Machine Speed |
Coil Weight |
| JWCT-0825 |
800mm (Max.) |
0.4 mm - 2.0 mm |
45pc / min under 500mm |
10 MT |
| JWCT-4020 |
1220mm (Max.) |
0.4 mm - 2.0 mm |
45pc / min under 500mm |
15 MT |
| JWCT-4030 |
1220mm (Max.) |
0.4 mm - 3.0 mm |
40pc / min under 500mm |
15 MT |
| JWCT-4060 |
1220mm (Max.) |
1.0 mm - 6.0 mm |
30pc / min under 500mm |
20 MT |
| JWCT-5030 |
1525mm (Max.) |
0.4 mm - 3.0 mm |
40pc / min under 500mm |
20 MT |
| JWCT-5040 |
1550mm (Max.) |
0.5 mm - 4.0 mm |
40pc / min under 500mm |
20 MT |
| JWCT-5060 |
1550mm (Max.) |
1.0 mm - 6.0 mm |
30pc / min under 500mm |
20 MT |
| JWCT-7130 |
2100mm (Max.) |
3.0 mm - 13.0 mm |
5 M ~ 40M / min |
20 MT |
|
| |
|
